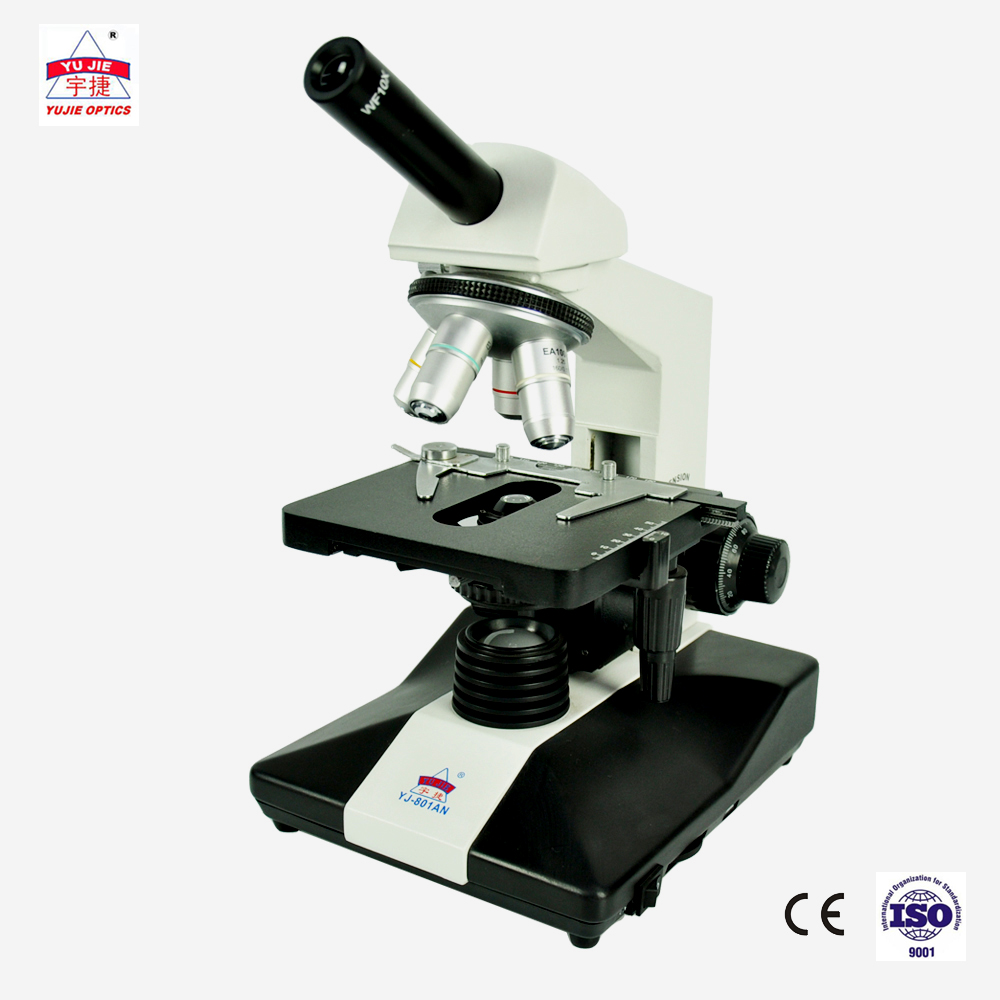

YJ-801AN-M
2019-02-13 14:44:52 Click: 4198
This series microscope is a bigger and basic model and high precision instrument designed and produced by our company.It is sepcially designed for clinical examination and teaching demonstration in medical and health establishments, laboratories, agricultural science and technology field, research institutes. It is used for routine work and research in biology, bacteriology cytology and pharmacology.
Production Description
 |  |
 |
| Eyepiece | Wide Field Plan-scope Eyepiece: WF10X/18mm |

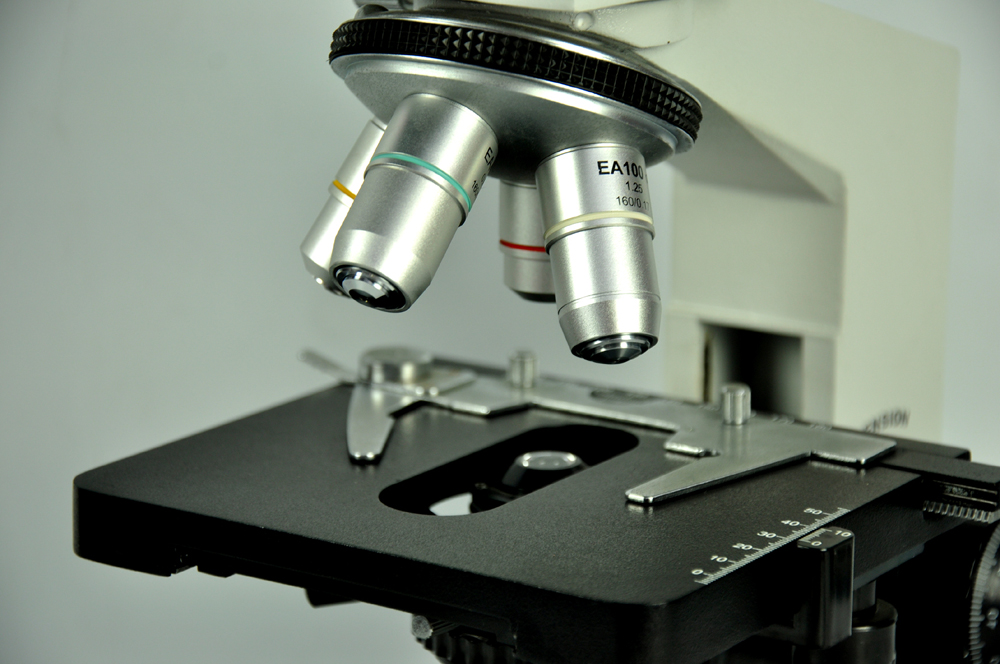

| Objective | 45mm DIN Achromatic Objective: 4X,10X,40X(S), 100(S,Oil) |
| Head | Monocular Head; 30° Inclined,360°Rotatable |
| Stage | Double Layers Mechanical Stage: 140X155mm, Moving Range X-Y: 70X50mm |
| Condenser | ABBE Condenser: N.A.1.25; Ф2-Ф30mm Iris Diaphragm and Ф32 Filter |

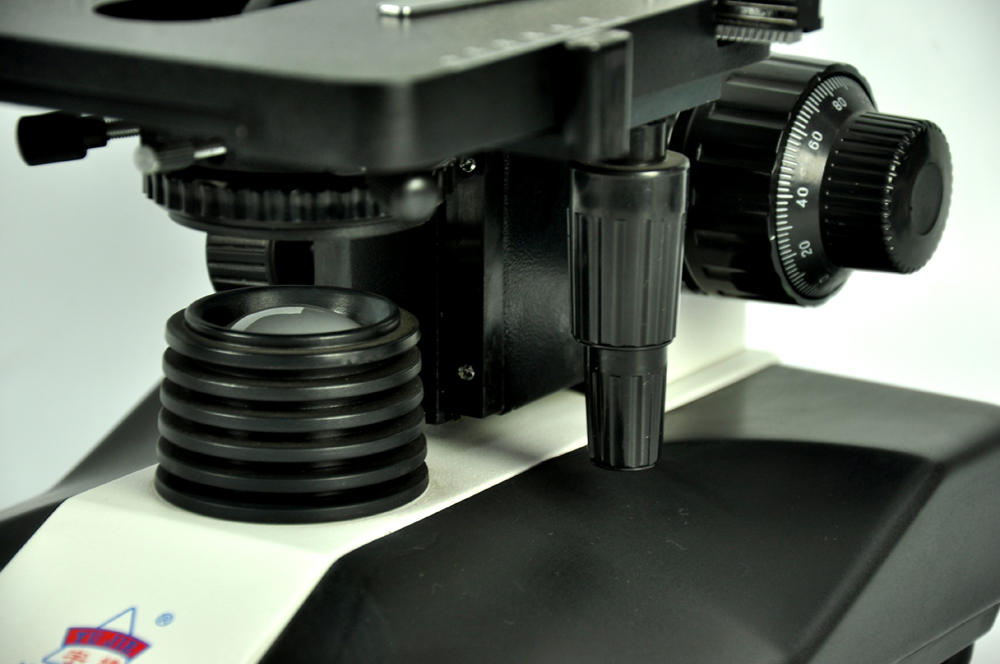

| Focusing Adjustment | Coaxial Coarse and Fine Focusing Adjustable Mechanism: 25mm, Precision:0.002mm |
| Illumination | Optional: Built-in Adjustable Brightness 1W LED lamp; 6V/20W Halogen Lamp |
| Optional | 1.WF10X, WF16X; 2.Semi Plan Objective, Plan Objective; 3.Rechargeable Batteries |
| Net Weight | 6kg |
Package
1set/Foam + Carton
Carton Dimension: 33X28X42cm
2sets/Foam+Carton
Carton Dimension: 58X36X45cm

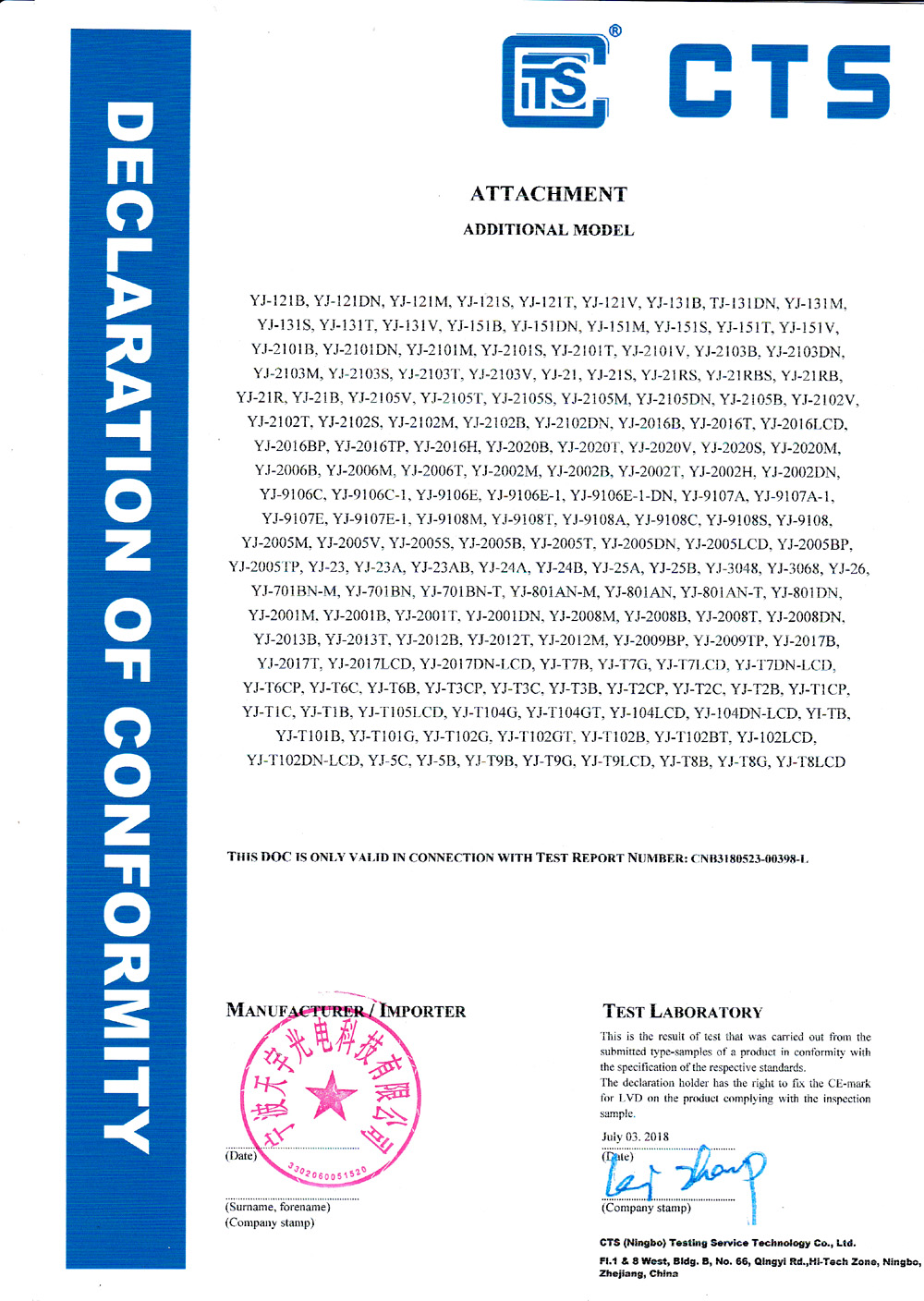

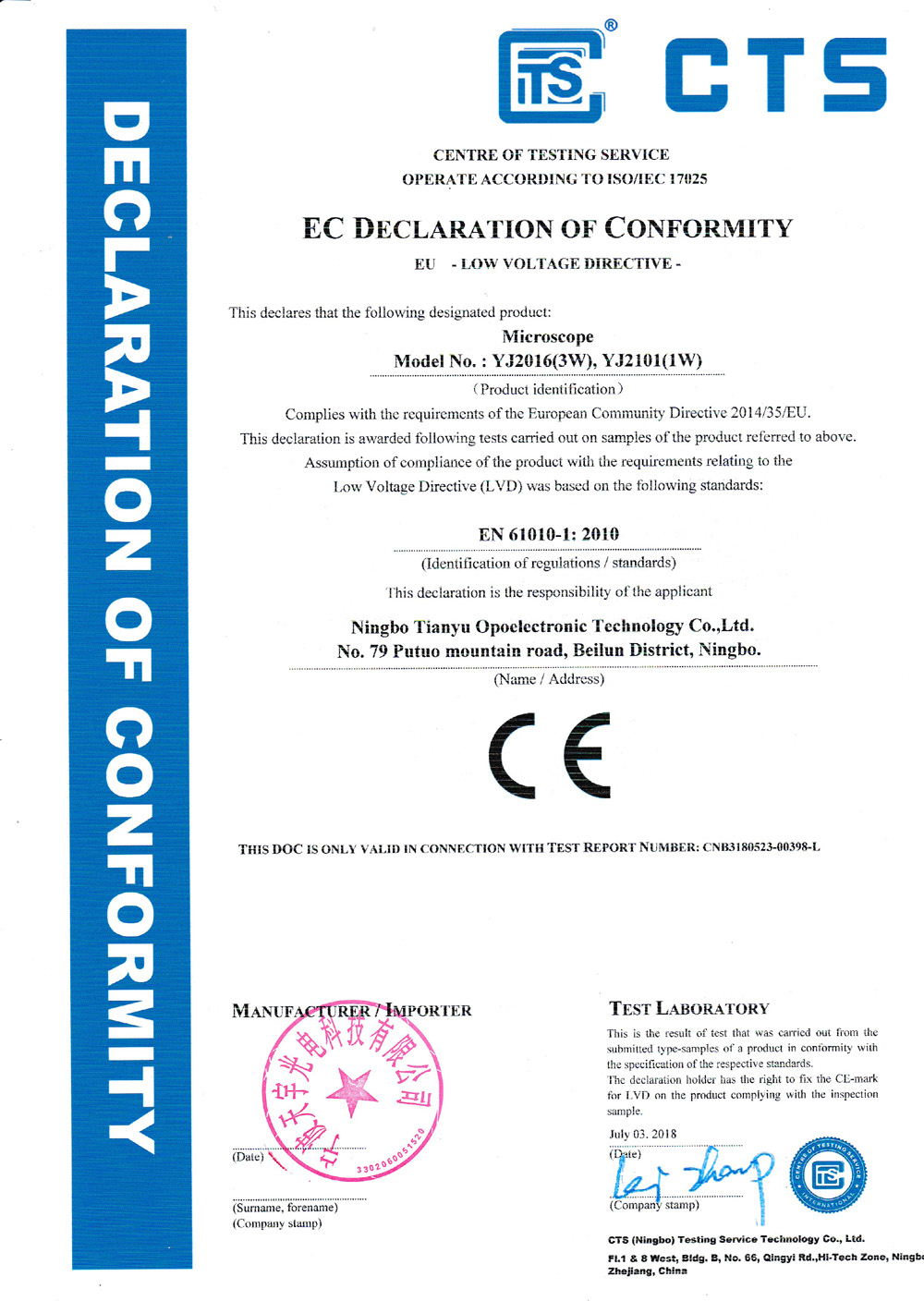

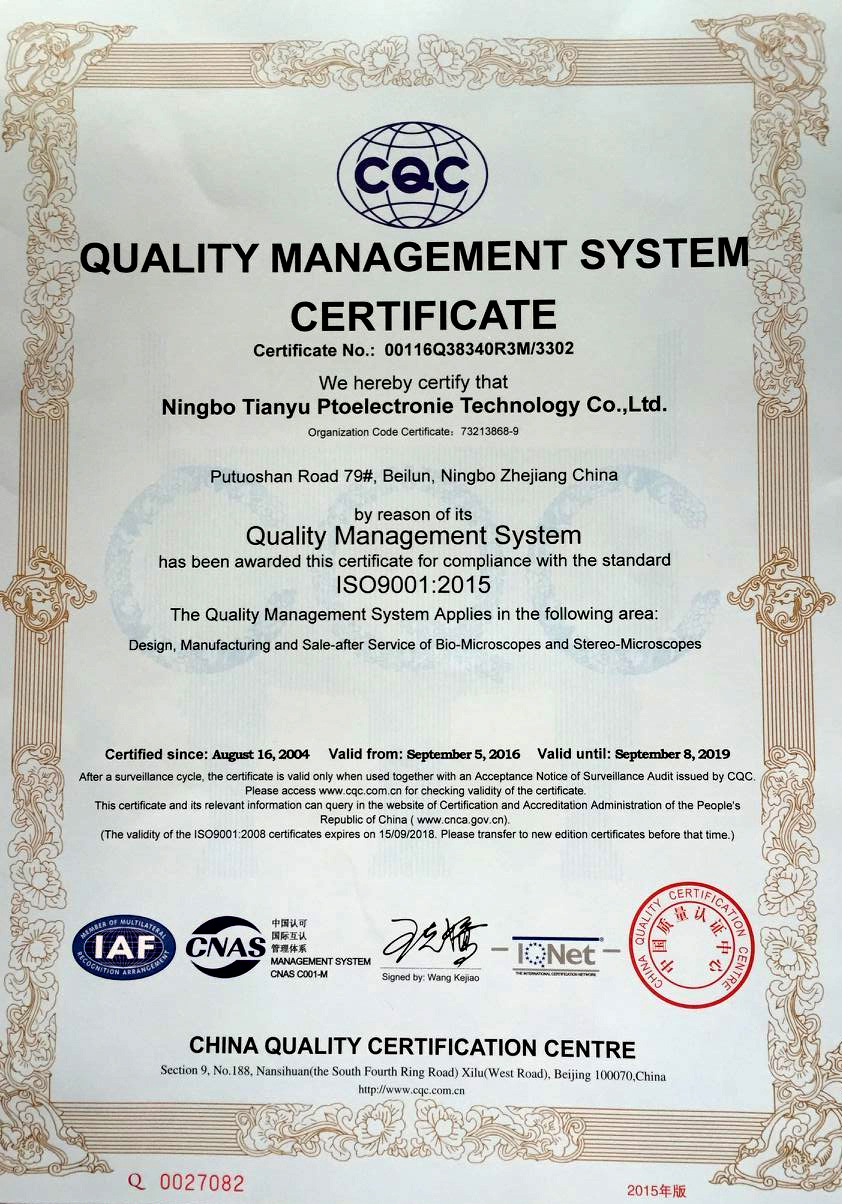

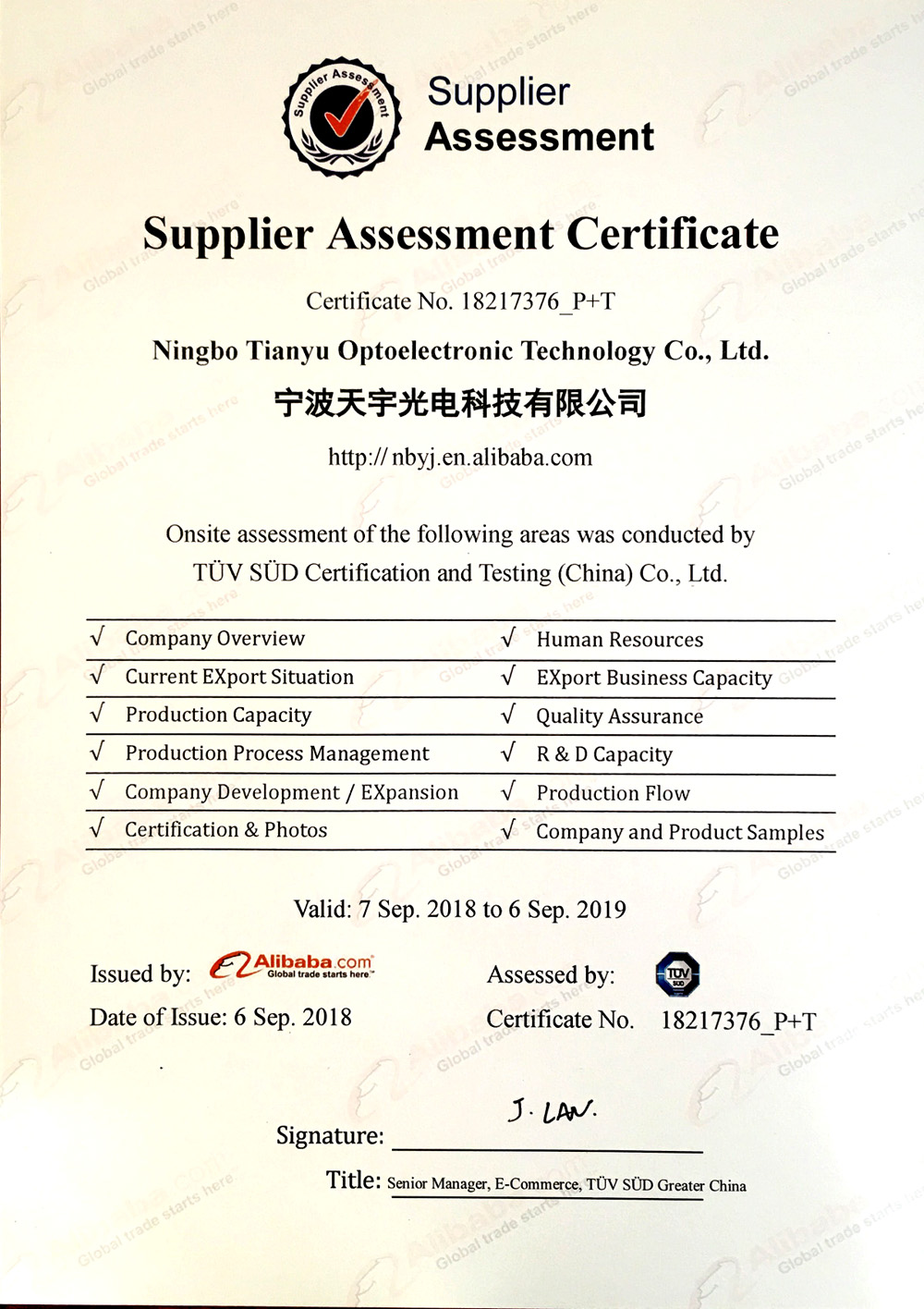

Certificate
|
|
|
|
|

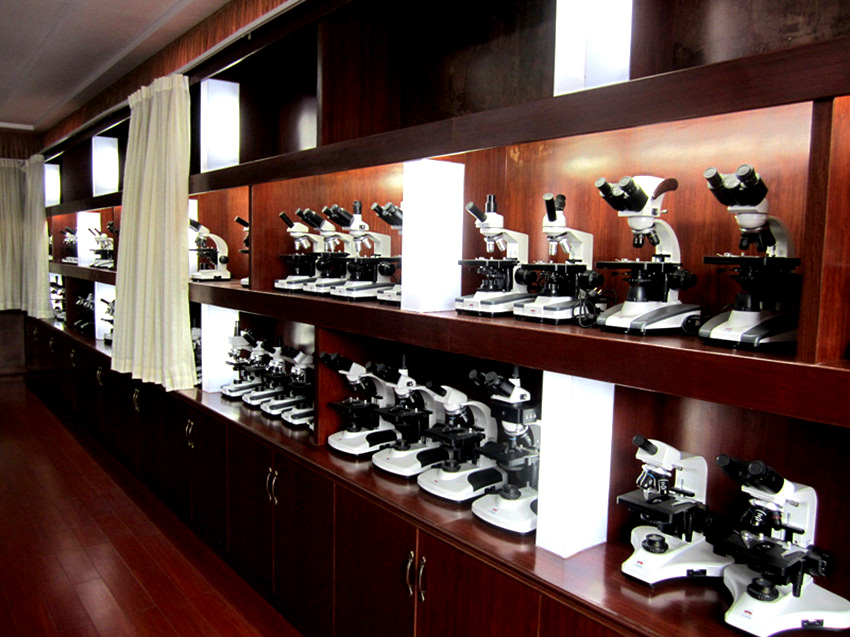

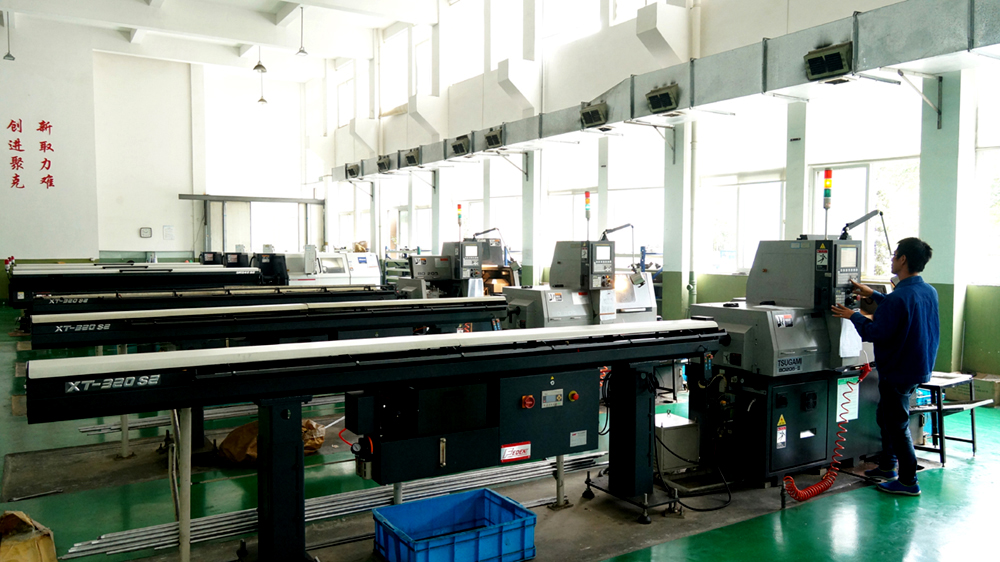

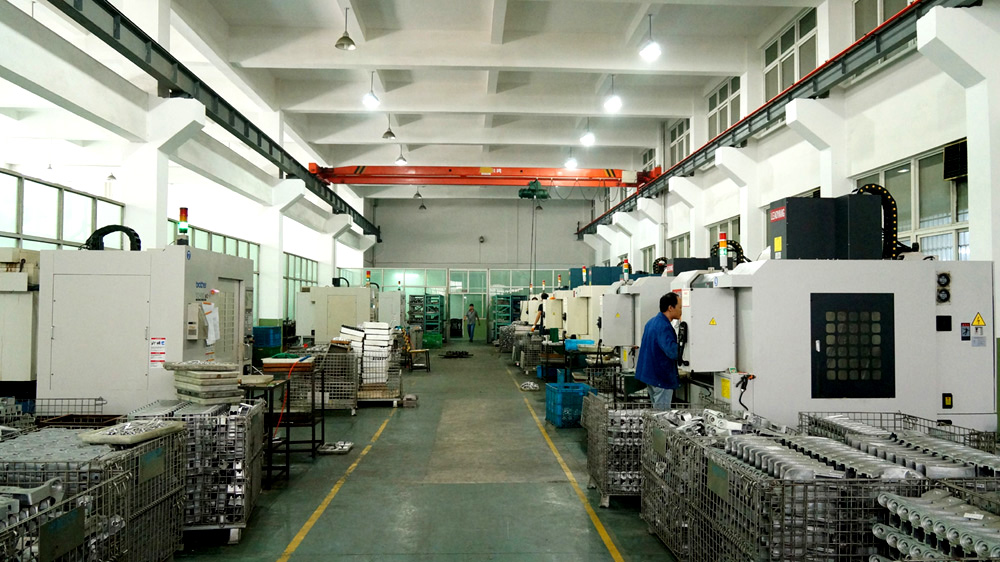

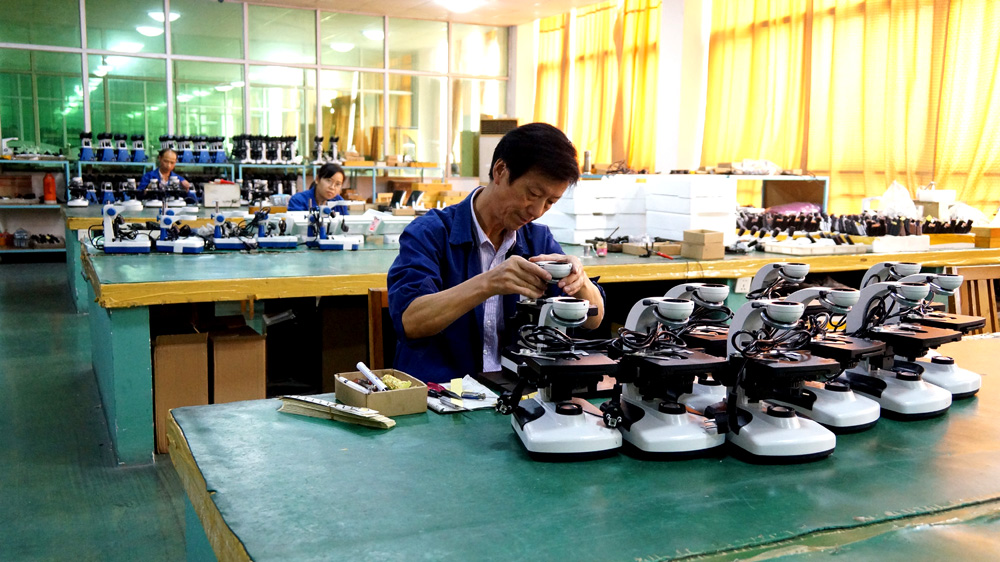

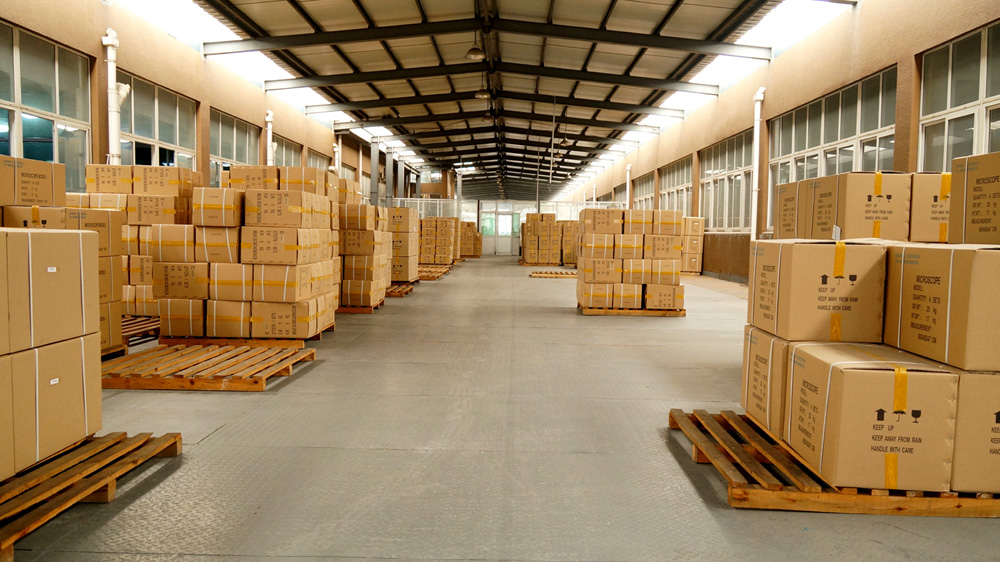

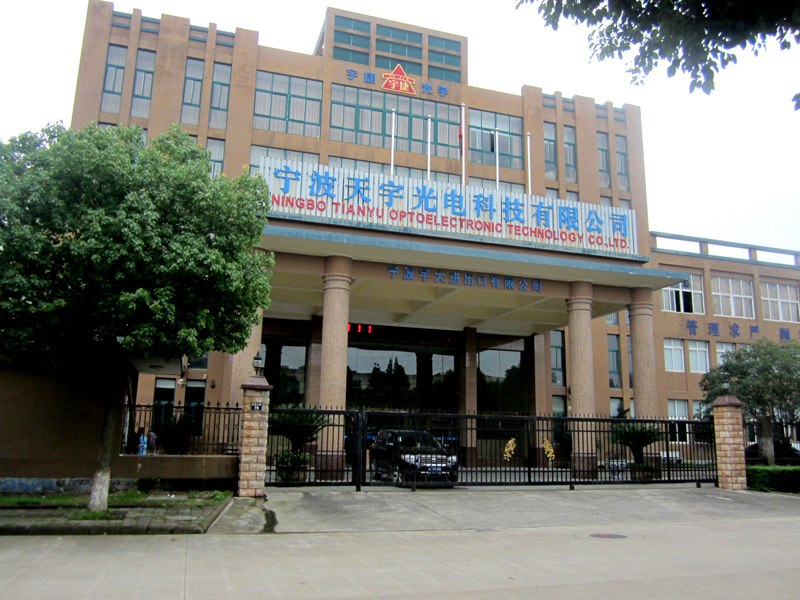

Company Pictures
 |  |
|
 |  |
|
