YJ-T3B
2019-04-30 12:30:29 Click: 5651

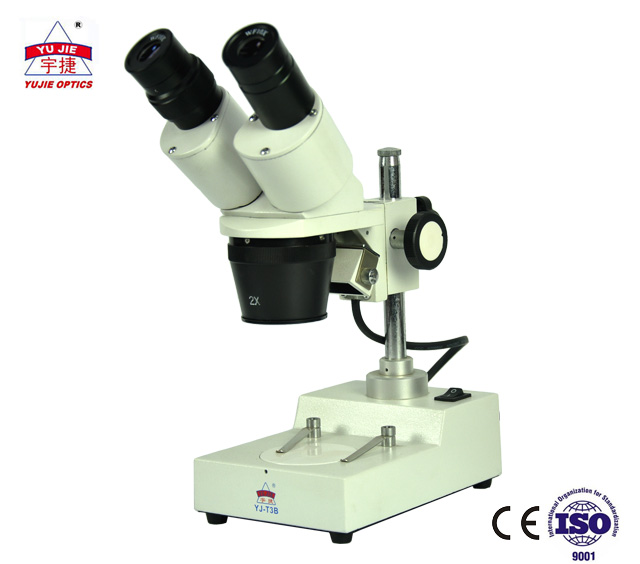

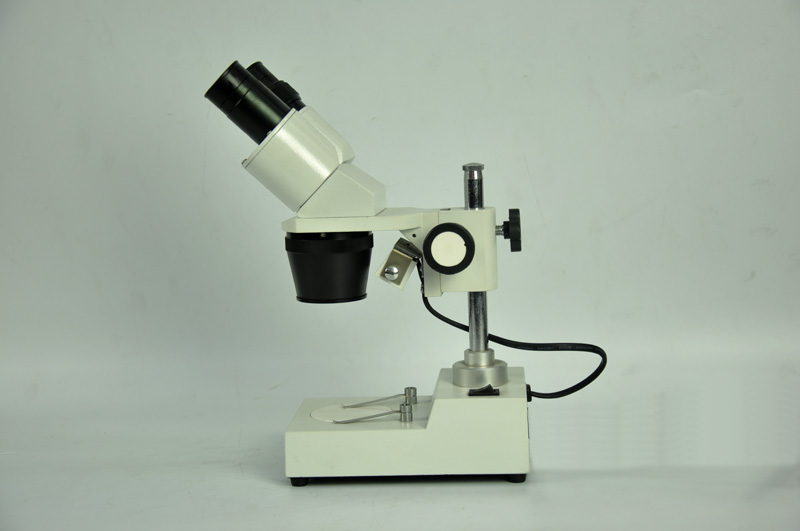

This series microscope is a basic two-steps fixed stereo microcsope. It is with large clear range, uniform field and easy operation. This microscope is used extensively world agriculture, as well as in electronic component manufacturing, specially suited for LED, PCB inspection, pressing plating and electronic component inspection.
Production Description
|  |
 |
| Eyepiece | Wide Field Plan-scope Eyepiece: WF10X/18mm |
| Objective | Grouped From Any Two Objectives of 1X, 2X, 3X and 4X, Working Distance: 1X-55mm, 2X-81mm, 3X-61mm, 4X-57mm |
| Head | Articulated Free Binocular Head, Interpupillary Distance: 55-75mm, 45°Inclined |
| Focusing Adjustment | Rack and Pinion Focusing with Mechanism for Adjusting Focusing Torque |
| Arm Type | Pole |
| Illumination | Top light 12V/10W halogen lamp and Ф60mm Black-white Reversible Stage Plate |
| Optional | 1.WF15X, WF20X; 2. LED lamp |
| Net Weight | 2.2kg |
Package
1set/Foam + Inner Box
4sets/Carton
Gross Weight: 10kg
Carton Dimension: 61X35X36cm
Certificate
|
|
|
|
|
Company Pictures
 |  |
|
 |  |
|
