YJ-T7G
2019-04-30 12:08:18 Click: 4038

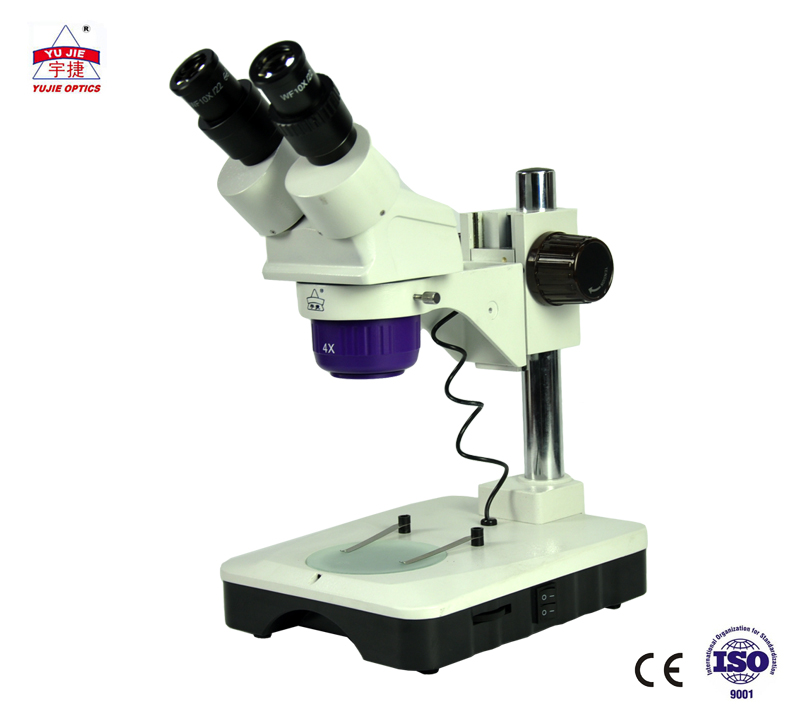

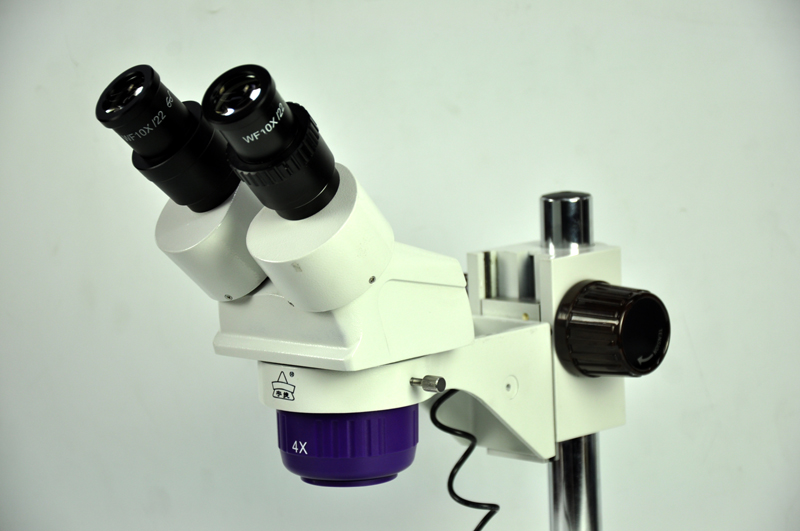

This series microscope is a basic stereo microcsope with two fixed settings. It is with large clear range, uniform field and easy operation. This microscope is used extensively world agriculture, as well as in electronic component manufacturing, specially suited for LED, PCB inspection, pressing plating and electronic component inspection.
Production Description
|  |
 |
| Eyepiece | Wide Field Plan-scope Eyepiece: WF10X |
| Objective | Grouped From Any Two Objectives of 1X, 2X, 3X and 4X, Working Distance: 100mm |
| Head | Articulated Free Binocular Head, 45°Inclined ,360° Rotatable, Interpupillary Distance: 55-75mm, with a diopter adaptor on the left eyepiece tube |
| Magnification | 10X-20X,or 10X-30X, or 10X-40X, or 20X-40X |
| Focusing Adjustment | Rack and Pinion Focusing with handwheels for Adjusting Focusing Torque; range:103mm |
| Working Stage | Φ95mm with 1pc of frosted glass(for bottom illumination); 1pc of plastic black-white reversible plate(for top illumination) |
| Arm Type | Pole;Height: 228mm |
| Illumination | Top and Bottom light: Top Built-in LED Ring Lamp and bottom 3.5V/1W LED Lamp, brightness can be adjusted. |
| Product Size | 250X200X340mm |
| Optional | 1.WF15X, WF20X; 2. Auxiliary Objectives: 0.5X, 0.75X,1.5X, 2X |
| Net Weight | 4.5kg |
Package
1set/Foam + Inner Box
2sets/Carton
Gross Weight: 11kg
Carton Dimension: 52X36X45cm
