YJ-T101G
2019-04-30 11:56:58 Click: 4414

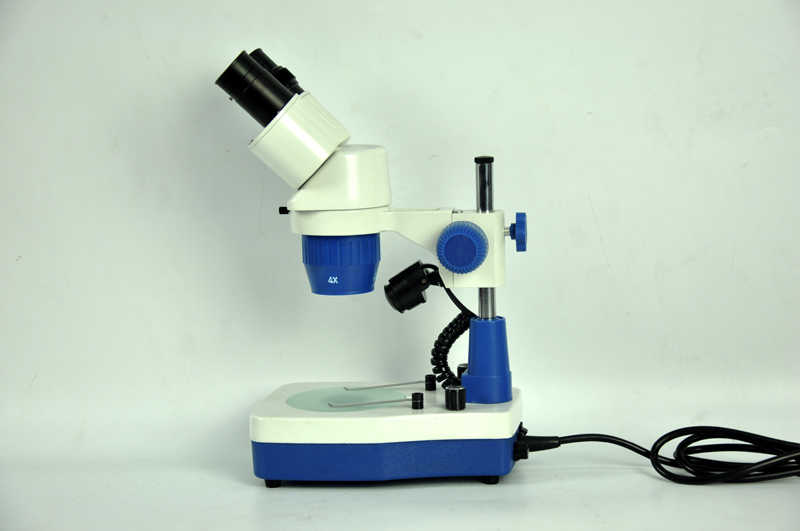

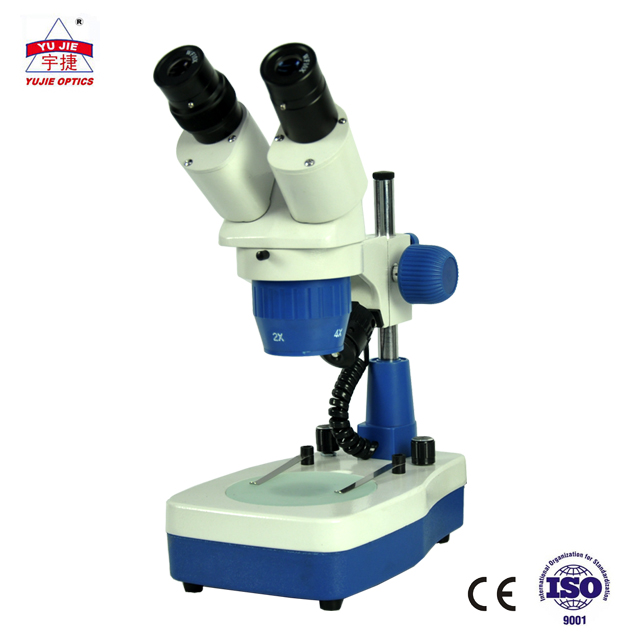

This series microscope is a basic stereo microcsope with two fixed settings. It is with large clear range, uniform field and easy operation. This microscope is used extensively world agriculture, as well as in electronic component manufacturing, specially suited for LED, PCB inspection, pressing plating and electronic component inspection.
Production Description
|  |
 |

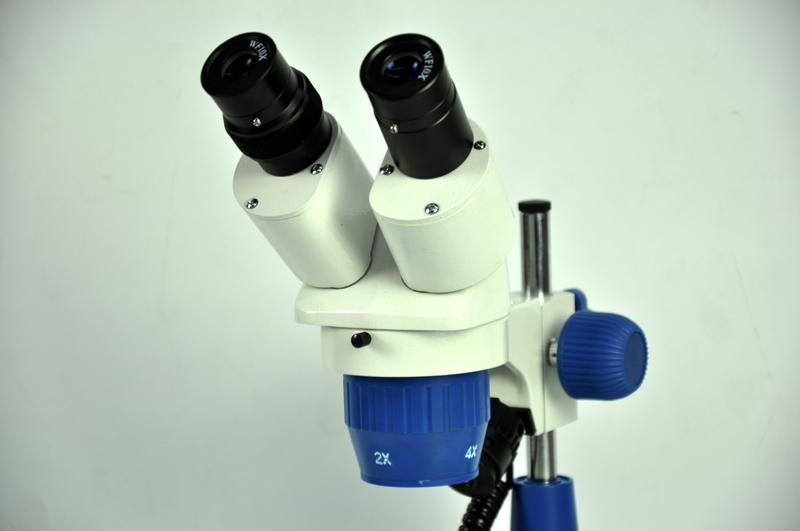

| Eyepiece | Wide Field Plan-scope Eyepiece: WF10X/18mm（a Pair), With a Dioptor Adaptor On the Left Eyepiece Tube. |
| Objective | Grouped From Any Two Objectives of 1X, 2X, 3X and 4X, Working Distance: 100mm |
| Head | Articulated Free Binocular Head, 45°Inclined ,360° Rotatable,Interpupillary Distance:55-75mm, |
| Magnification | 10X-20X,or 10X-30X, or 10X-40X, or 20X-40X |
| Focusing Adjustment | Rack and Pinion Focusing with handwheels for Adjusting Focusing Torque |
| Stand Type | Pole, Height： 205mm; Moving Range of head holder:80mm |
| Illumination | Top and Bottom Extra light LED Lamp, Light Adjustable Separately |
| Whole Size | 210x140x360mm |
| Optional | WF15X, WF20X; |
| Net Weight | 2.5kg |
Package
1set/Foam + Inner Box
4sets/Carton
Gross Weight: 12kg
Carton Dimension: 67X40X41cm
