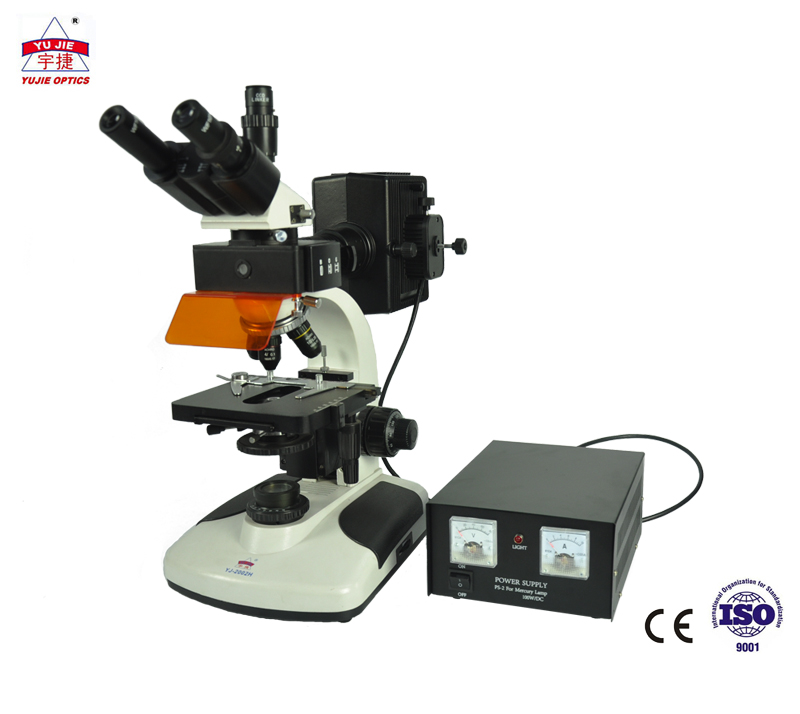

This series microscope is a bigger size model and high precision instrument designed and produced by our company.It is espcially designed for clinical examination and teaching demonstration in medical and health establishments, laboratories, agricultural science and technology field, research institutes. It is used for routine work and research in biology, bacteriology cytology and pharmacology.
Production Description
|  |
 |
| Eyepiece | Wide Field Plane-scope Eyepiece: WF10X/18mm； Wide Field Plane-scope Eyepiece: WF16X/13mm; |

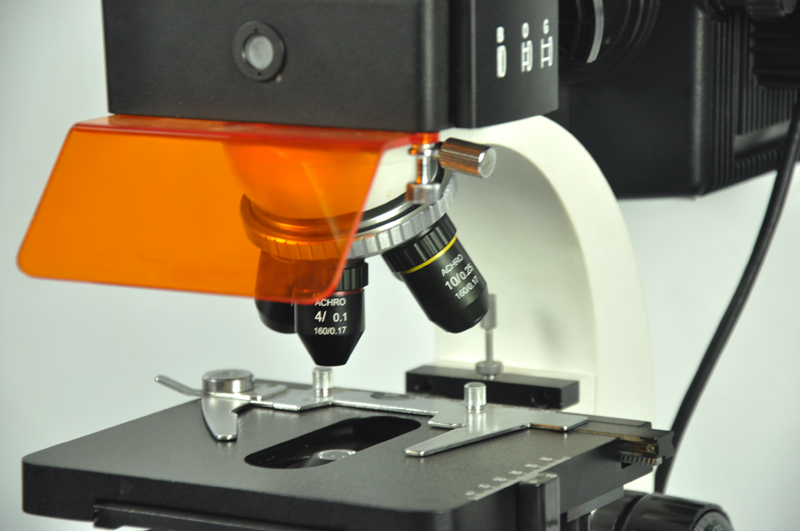

| Objective | 45mm DIN Achromatic Objective: 4X,10X,40X(S), 100(S,Oil) |
| Head | Articulated Free Trinocular Head, Interpupillary Distance:55-75mm; 30°Inclined, 360°Rotatable; The Adjustable Height range of the Vertical Tube: 10mm |
| Stage | Double Layers Mechanical Stage: 140X155mm, Moving Range X-Y: 70X50mm |
| Condenser | ABBE Condenser: N.A.1.25; Ф2-Ф30mm Iris Diaphragm and Ф32 Filter |
| Focusing Adjustment | Coaxial Coarse and Fine Focusing Adjustable Mechanism: 30mm, Precision:0.002mm |
| Others | B(Blue) Exciting Lighting Filter System, Wavelength 450-490(nm); G(Green) Exciting Lighting Filter System, Wavelength 510-570(nm); |
| Optional | Binocular head |
| Net Weight | 13KG |
Package
Body package: 1set/ctn, 42x31x52cm; Gross weight: 9.3kgs
Fluorescent Attachment Package: 1set/ctn 46x38x23cm, gross weight: 6kgs
